Electrane is an NDI polyurethane elastomer used in conductive systems. At various frequencies and temperatures! Under stable conditions, it can achieve insulation, conductivity, and anti-static purposes. Except for the addition of conductive agents, the surrounding resistance operates with high uniformity. The resistance value ranges from 103-10 ° Q (for conductive applications) to 106-10 ° Q (for anti-static applications).
Electrane is an NDI polyurethane elastomer used in conductive systems. At various frequencies and temperatures! Under stable conditions, it can achieve insulation, conductivity, and anti-static purposes. Except for the addition of conductive agents, the surrounding resistance operates with high uniformity. The resistance value ranges from 103-10 ° Q (for conductive applications) to 106-10 ° Q (for anti-static applications).
Electrane is a "high-end" special material designed to meet extreme working conditions (high speed, high temperature, high load, long life). Therefore, it is mainly applied to industrial processing, semiconductors, and cutting-edge scientific research equipment that have the ultimate pursuit of reliability and performance.
| Mechanical property | ISO Standard | Unit | Parameter | |||
|---|---|---|---|---|---|---|
| Hardness | 868 | Shore A | 85 | 91 | 93 | 95 |
| 100%Tensile Modulus | 37 | MPa | 5.32 | 7.84 | 9.92 | 11.54 |
| 300%Tensile Modulus | 37 | MPa | 9.28 | 12.82 | 15.29 | 17.27 |
| Tensile Strength | 37 | MPa | 54.11 | 50 | 48.93 | 50.2 |
| Rebound | 34 | kN/m | 27.11 | 42.24 | 52 | 60 |
| Elongation at break | 37 | % | 681 | 821 | 750 | 708 |
| Tear Strength | 4662 | % | 65 | 64 | 63 | 62 |
| Abrasion | 4649 | mm³ | 36.34 | 30.85 | 26.36 | 26.34 |
| Taber abrasion (S42/4.9N) | 9352 | mg | 41.79 | 35.48 | 30.31 | 30.29 |
| Permanent compression deformation | 815 | |||||
| 23°C/70H | % | 16.23 | 15.20 | 14.74 | 12.58 | |
| 70°C/70H | % | 19.22 | 19.45 | 19.53 | 20.32 | |
NDIthane has excellent dynamic mechanical property, friction coefficient, abrasion resistance, penetration resistance and good adhesion with metals and polar macromolecules. It can meet various complex environment and application requirements.
Fricthane is a diisocyanate application material developed on the raw material 1.5-naphthalene, which has high tensile strength. Special tread types can help improve starting resistance, wet grip, and braking effectiveness. A higher coefficient of friction can improve tire safety, prevent slippage, and enhance braking performance.
Rollthane material has better heat resistance, higher load capacity, and lower compression permanent deformation. The general polyurethane elastomer accelerates the aging process of polyurethane under the simultaneous action of high temperature and oxygen, but Rollthane can exhibit high overall high-temperature strength.

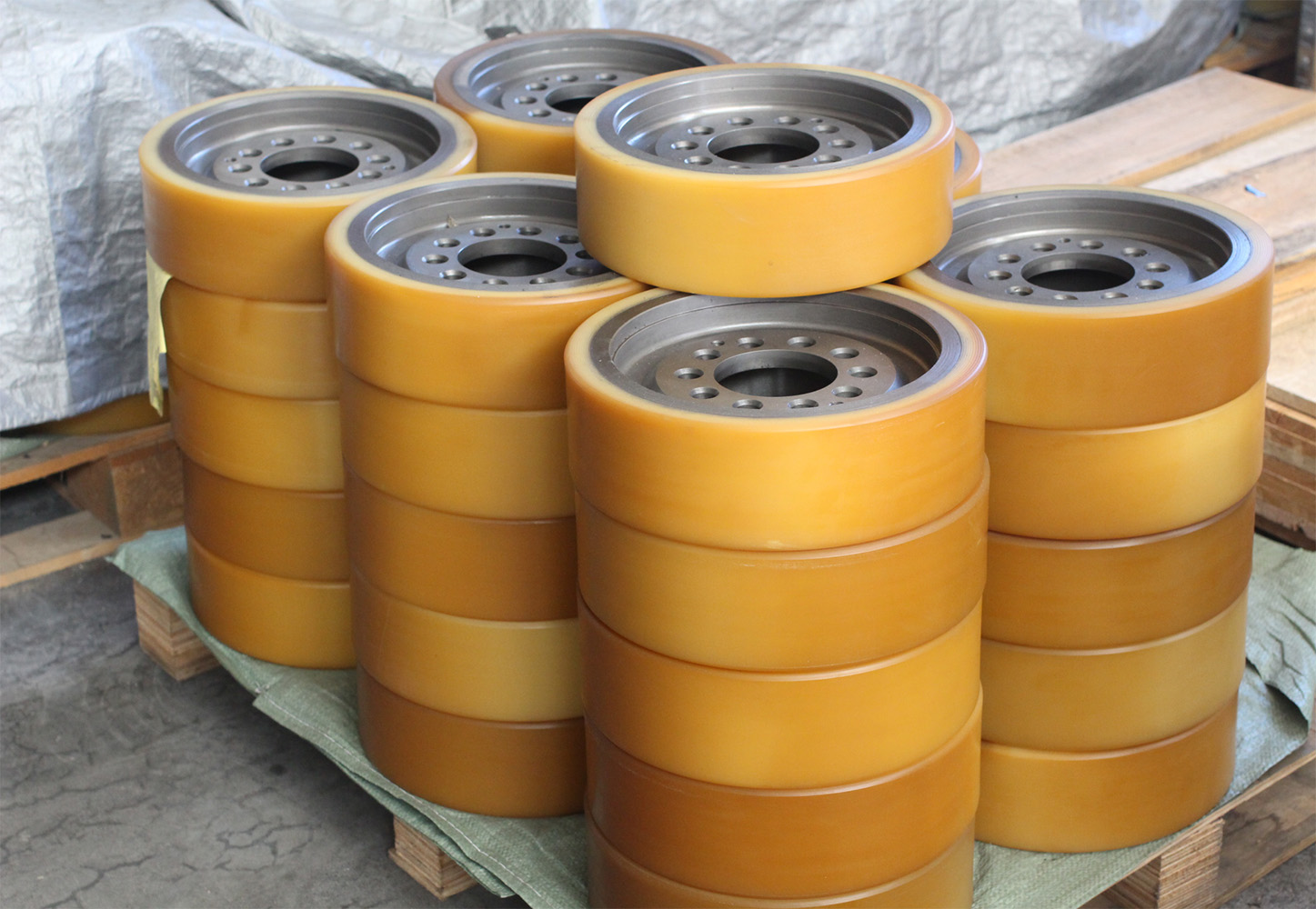

Yalide Technology focuses on providing customers with one-stop system solutions for roller/shaft/wheel products.
