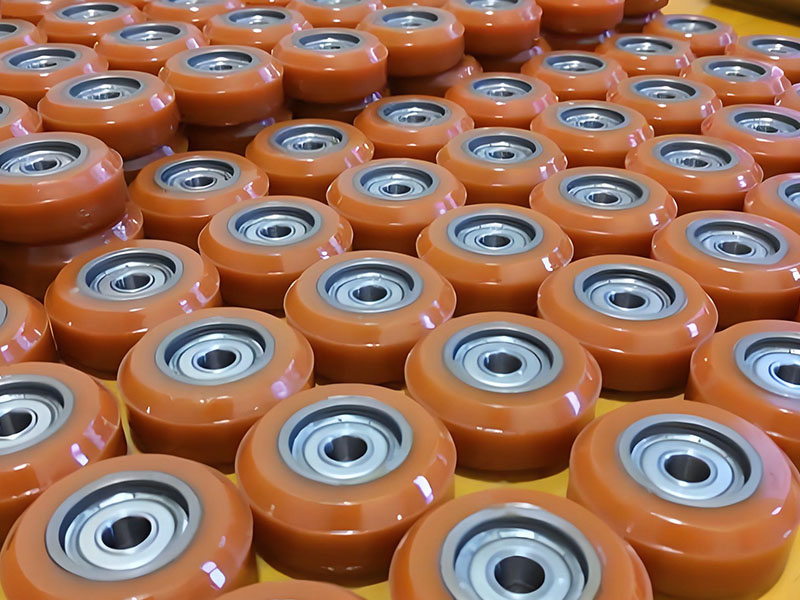

VULKOSOFT ® It is based on Desmodur ® 15% high elasticity polyurethane elastomer. VULKOSOFT ® Having all VULKOLLAN ® All materials have excellent mechanical properties, including high dynamic load-bearing capacity, high wear resistance, and tear propagation resistance. They have the highest elastic modulus among all elastomers, good mechanical wear resistance, high impact elasticity, and low compression deformation.
VULKOSOFT ® It is based on Desmodur ® 15% high elasticity polyurethane elastomer. VULKOSOFT ® Having all VULKOLLAN ® All materials have excellent mechanical properties, including high dynamic load-bearing capacity, high wear resistance, and tear propagation resistance. They have the highest elastic modulus among all elastomers, good mechanical wear resistance, high impact elasticity, and low compression deformation.
VULKOSOFT ® On the basis of meeting high load-bearing requirements, it has low noise, good vibration damping, and ground protection characteristics. If the wheels you need have a good protective effect on the ground; So it is an ideal choice.
| Technical Information | Standard | Unit | Parameter |
| Shore hardness A | ISO 7619 | — | 85°(±3) |
| Density | ISO 1183 | g/cm3 | approx. 1.2 |
| Elongation at break | DIN 53 504 | % | approx. 607 |
| Stress at 100% elongation | DIN 53 504 | MPa | 8.0 – 8.5 |
| Resilience | DIN 53 512 | % | 55 – 60 |
| Tear strength determination | ISO 34 | kN/m | 43 – 47 |
| Compression deformation (70 hours, 23 ℃) | ISO 815 | % | 9.0 – 11 |
| Wear amount | ISO 4649 | mm3 | 40 |
| Friction coefficient (8000N traction force acting on damp ground) | — | — | 0.11 |
| Rolling resistance (average value) as a percentage of load at 20 ℃ | — | % | 0.85 – 0.95 |
| Percentage of starting resistance (average value) to load at 20 ℃ | — | % | 1.13 – 1.43 |
PEVOPUR® 93° It is a high-quality polyurethane elastomer with excellent mechanical and chemical properties, high dynamic load-bearing capacity, high elasticity, and good pressure deformation performance. At the same time, it has good resistance to many chemical media and has a load-bearing capacity several times higher than rubber.
VULKOLLAN ®- QUARTZ is a VULKOLLAN based technology ® The composite material is suitable for use in areas that are extremely slippery and dangerous due to icing. Due to the presence of quartz sand, it can significantly improve traction performance and maintain VULKOLLAN ® Other perfect performance inherent in itself.
VULKODYN ® It is a high elasticity polyurethane elastomer developed by R Ä DER-VOGEL for extreme dynamic applications. VULKODYN ® The material can reduce the rolling resistance coefficient by about 20%, meet higher load-bearing requirements at the same operating speed, have better shock absorption, and provide greater traction.
Yalide Technology focuses on providing customers with one-stop system solutions for roller/shaft/wheel products.
