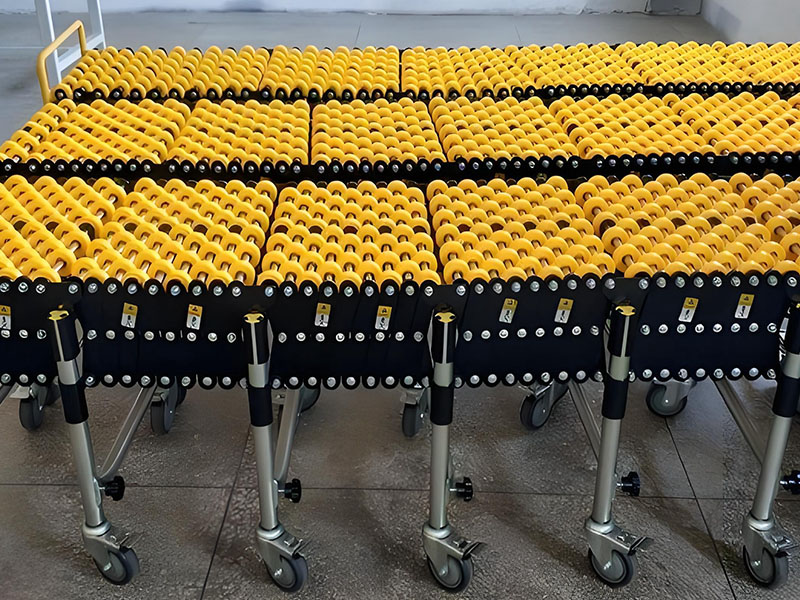

Logistics Conveyor Rollers

The logistics conveyor bed roller rollers are designed specifically for conveyor beds, roller lines, and various continuous conveying systems. Our polyurethane conveyor bed rollers are key components to ensure smooth logistics and improve conveying efficiency. The logistics conveyor bed roller is made of highly wear-resistant polyurethane material with precision manufacturing. Its excellent elastic properties can effectively absorb the impact force of goods falling and transportation, greatly reduce operating noise, and gently protect various packaging boxes and workpiece surfaces to avoid scratches. The optimized hardness design and precise dynamic balancing processing ensure that the roller can maintain excellent smoothness and low vibration even under high-speed operation, thereby ensuring the smooth movement and precise positioning of the conveyed goods.

YALIDE > Application Area>Logistics Handling> Logistics Conveyor Rollers

Logistics Conveyor Rollers

The logistics conveyor bed roller rollers are designed specifically for conveyor beds, roller lines, and various continuous conveying systems. Our polyurethane conveyor bed rollers are key components to ensure smooth logistics and improve conveying efficiency. The logistics conveyor bed roller is made of highly wear-resistant polyurethane material with precision manufacturing. Its excellent elastic properties can effectively absorb the impact force of goods falling and transportation, greatly reduce operating noise, and gently protect various packaging boxes and workpiece surfaces to avoid scratches. The optimized hardness design and precise dynamic balancing processing ensure that the roller can maintain excellent smoothness and low vibration even under high-speed operation, thereby ensuring the smooth movement and precise positioning of the conveyed goods.

Roller Parameters

We offer various specifications from light to heavy-duty, with high-quality bearings embedded in the rollers to ensure flexible rotation, low resistance, and long service life. Whether it is a lightweight packaging sorting line or a heavy-duty assembly line, our conveyor bed rollers can become the solid foundation of your efficient conveying system with their reliable performance, excellent durability, and low maintenance requirements.

Number	Outer diameter (mm)	Width (mm)	Inner diameter (mm)	Single wheel load (kg)
YLD-40×20~100-19/8	40	20~100	19/8	50
YLD-40×20~100-22/10	40	20~100	22/10	100
YLD-50×12-32/15	50	12	32/15	40
YLD-50×15-32/12	50	15	32/12	50
YLD-50×20-32/12	50	20	32/12	70
YLD-50×30~100-22/10	50	30~100	22/10	100
YLD-50×30~100-24/12	50	30~100	24/12	120
YLD-50×30~100-28/15	50	30~100	28/15	150
YLD-60×20-40/12	60	20	40/12	90
YLD-60×25-30/10	60	25	30/10	120
YLD-60×20-47/20	60	20	47/20	80
YLD-60×25-47/20	60	25	47/20	100
YLD-60×30~100-24/12	60	30~100	24/12	120
YLD-60×30~100-28/15	60	30~100	28/15	150
YLD-60×30~100-37/20	60	30~100	37/20	200
YLD-70×20-40/20	70	20	40/20	110
YLD-70×25-47/20	70	25	47/20	140
YLD-70×30-52/25	70	30	52/25	160
YLD-70×20-52/25	70	20	52/25	100
YLD-70×25-52/25	70	25	52/25	120
YLD-70×30-47/20	70	30	47/20	140
YLD-75×20-47/20	75	20	47/20	120
YLD-75×25-47/20	75	25	47/20	150
YLD-75×30-52/25	75	30	52/25	180
YLD-75×20-52/25	75	20	52/25	100
YLD-80×30~100-28/15	80	30~100	28/15	150
YLD-80×30~100-37/20	80	30~100	37/20	200
YLD-80×30~100-42/25	80	30~100	42/25	250
YLD-100×30~100-37/20	100	30~100	37/20	200
YLD-100×30~100-42/25	100	30~100	42/25	250
YLD-100×30~100-47/30	100	30~100	47/30	300
