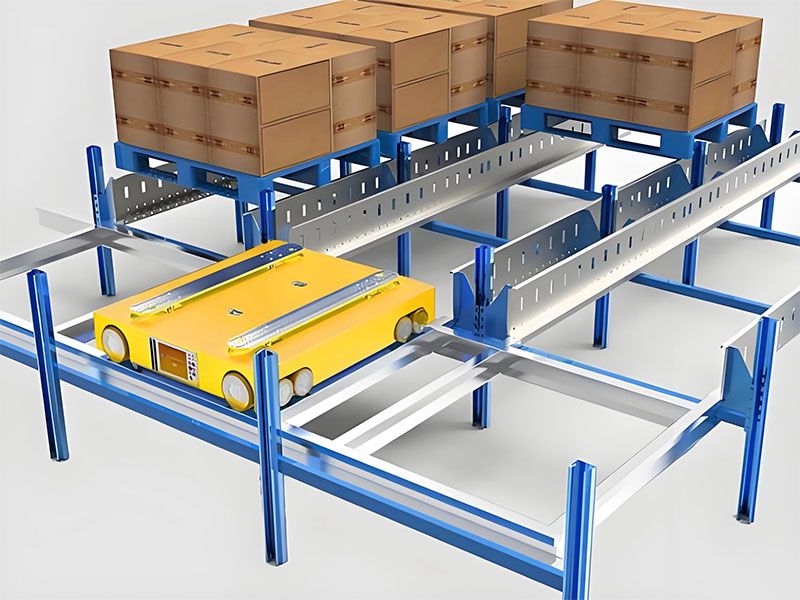

Shuttle Car Wheels

Shuttle Car Wheel Parameters

The wheels are made of heavy-duty polyurethane formula, which has extremely high wear resistance and tear resistance, and can effectively resist the rapid wear of the wheel body during frequent acceleration, braking, and cornering. The optimized hardness and elastic modulus design not only provides sufficient rigidity to bear the weight of fully loaded shelves, but also endows the wheels with excellent micro elastic deformation ability. It can ensure precise guidance in contact with the track, prevent “climbing” and “gnawing”, and effectively absorb impact vibrations, ensuring smooth and low-noise operation.

Number	Outer diameter (mm)	Width (mm)	Inner diameter (mm)	Single wheel load (kg)
YLD-75×20	75	20	20	100
YLD-100×30	100	30	20	300
YLD-110×20	110	20	20	200
YLD-130×50	130	50		500
YLD-130×55	130	55		600
YLD-130×68	130	68		700
YLD-140×23	140	23		250
YLD-145×68	145	68		800
YLD-158×55	158	55		700
YLD-165×37	165	37		500
YLD-170×30	170	30	25	400
YLD-200×42	200	42	30	700
YLD-210×70	210	70		800
YLD-250×80	250	80		1000
YLD-250×80	250	80		1000
YLD-270×130	270	130		3000
YLD-270×100	270	100		2500
YLD-285×100	285	100		1500
YLD-300×100	300	100		1500
