Project Background

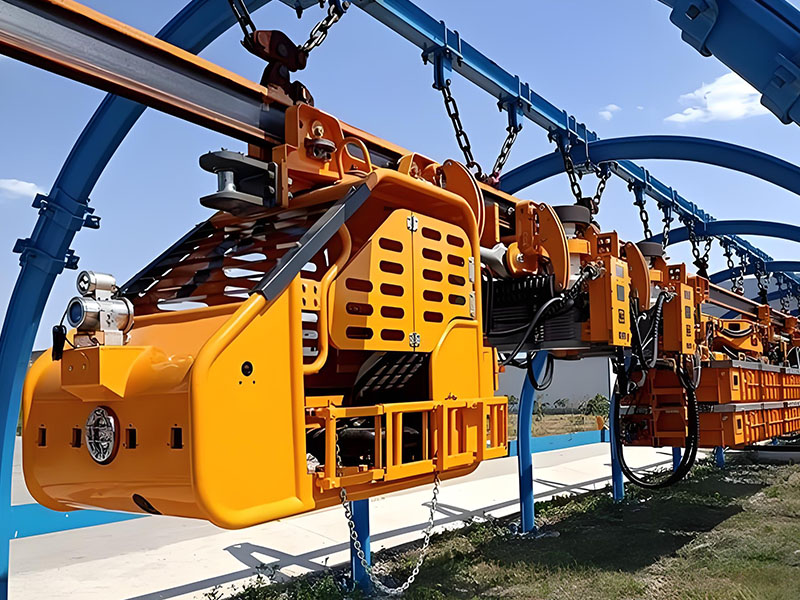

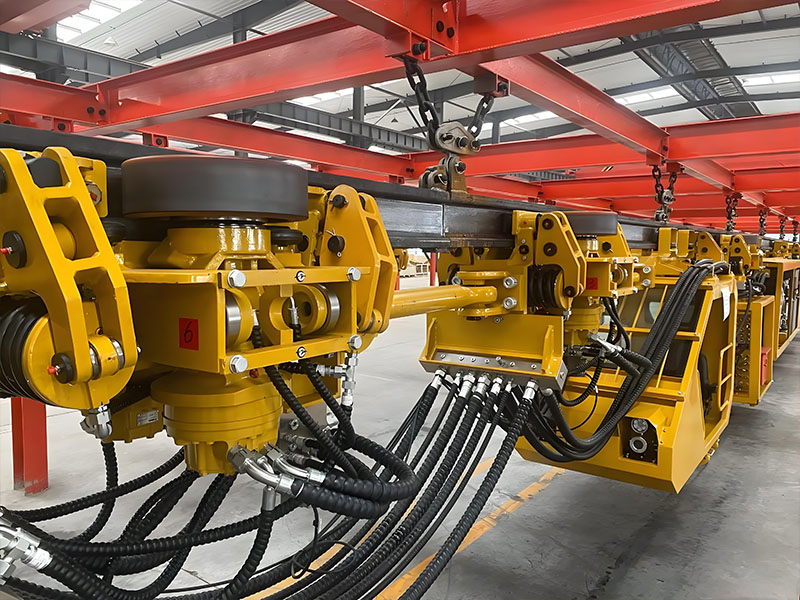

XX Mining Group, a modern coal mine located in Shanxi Province, China, has comprehensively upgraded its underground auxiliary transportation system to a network of explosion-proof diesel-powered monorail hoists. Operating within a tunnel network exceeding 15 kilometers in total length, this system handles the transport of equipment, materials, and personnel, serving as the “lifeline” for safe production within the mine. However, after two years of operation, abnormal wear and failure of the monorail hoist’s running wheels became increasingly prominent, severely impacting transportation efficiency and underground operational safety.

Unique Challenges Facing Mine Monorail Hoists

The head of the mine’s Electromechanical Transportation Department detailed three major technical challenges posed by extreme underground conditions:

1. Dual Challenges of Heavy-Load Impacts and Track Irregularities
Our monorail crane is designed for a 25-ton load capacity. However, due to installation constraints, the underground track features localized unevenness and joints. When heavy-load vehicles traverse these sections, the wheels endure massive instantaneous impact loads, causing frequent surface spalling and even fragmentation of the original wheels.

2. Corrosion and aging in complex chemical environments
Underground humidity consistently exceeds 90%, with the presence of acidic mine water, hydraulic oil, and diesel mixtures. Standard polyurethane wheels accelerate aging in such conditions, developing surface cracking and hardness variations that severely shorten service life.

3. Balancing Explosion-Proof Safety and Wear Resistance
All underground mining equipment must meet explosion-proof standards, including static electricity prevention. Traditional solutions often require compromising between wear resistance and anti-static properties, resulting in either accelerated wheel wear or safety hazards.

Core Requirements for Polyurethane Wheels in Mine Monorail Cranes

Given the unique conditions of coal mines, monorail crane wheels must simultaneously meet these stringent requirements:

Heavy-Load Impact Resistance: Each wheel must withstand a static load of no less than 8 tons and endure instantaneous impact loads exceeding three times this value.

Environmental Tolerance: Maintain stable performance in environments with humidity above 90%, temperatures ranging from -10°C to 40°C, and weakly acidic conditions (pH 5-6).

Explosion-proof safety standards: Surface resistance must be strictly controlled between 1×10^5Ω and 1×10^8Ω to prevent hazardous static electricity buildup.

Wear resistance lifespan: Under conditions of 12 hours daily operation and 300 working days annually, the target service life must not be less than 18 months.

Flame retardancy: Materials must pass coal mine flame retardant standard testing, achieving V-0 rating.

Polyurethane Wheel Solutions for Coal Mines

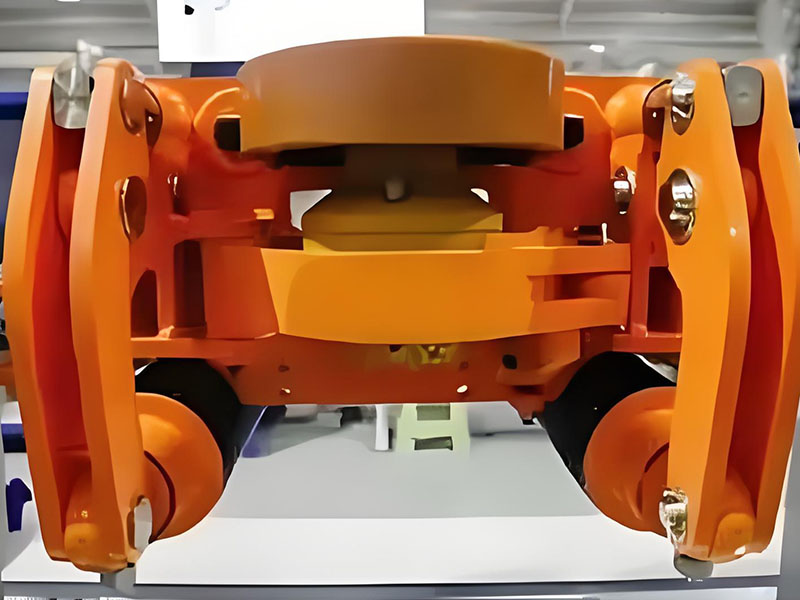

Our dedicated team of materials engineers and mining machinery experts developed the “MineSafe” series of polyurethane wheels for monorail hoists after six months of R&D testing:

Solution 1: Multi-Layer Composite Impact-Resistant Structure

To address heavy-load impact challenges, we innovated a “rigid-flexible triple-layer structure”:
High-Strength Alloy Core: Forged from solid 42CrMo alloy steel, achieving HRC 38-42 hardness after heat treatment.
Transition Buffer Layer: 8mm-thick specialty elastomer specifically engineered to absorb and disperse impact energy.
Ultra-Wear-Resistant Working Surface: 15mm-thick modified polyurethane with a surface hardness of Shore D75, delivering 50% greater impact resistance than conventional materials.

Solution 2: Corrosion-Resistant Formulation System

To address underground chemical corrosion, we developed a patented formulation:
Hydrolysis-Resistant Formula: Incorporates specialized segments into the polyurethane molecular chain, maintaining over 85% material performance retention in high-temperature, high-humidity environments.
Oil-Resistant Treatment: Wheel surfaces undergo plasma surface treatment to form a dense oil-repellent layer, preventing swelling caused by oil penetration.
Anti-mold and Antibacterial: Incorporates inorganic antimicrobial agents to effectively inhibit fungal growth in humid conditions.

Solution 3: Integrated Safety Design

To meet coal mine safety requirements, we implement multiple safeguards:
Intrinsically Safe Anti-static Technology: Integrates a directional conductive network within the material, ensuring surface resistance remains stable at approximately 5×10^6Ω.
Intrinsically Flame-Retardant Formulation: Utilizes reactive flame retardants to achieve an oxygen index exceeding 32%, far surpassing coal mine standards.
Failure Warning Design: Embedded wear indicator lines within the wheel body automatically reveal a warning color when wear reaches safety limits.

Implementation Results and Safety Benefits

After 12 months of underground operation for the first batch of 200 specialized wheels, the mine conducted a comprehensive effectiveness assessment:
Load Performance: At the most severe track joints, impact load tolerance increased by 60% with no cracking observed.
Environmental Adaptability: After continuous operation for one year, the wheel surface showed no cracking or hardness changes, maintaining over 90% of its original performance.
Safety Metrics: All wheel surface resistivity values remained stable within safety ranges, passing 12 months of continuous monitoring by the Coal Mine Safety Monitoring Center.
Service Life: Calculations indicate an expected lifespan of 24 months at the current wear rate, significantly exceeding projected targets.

The deployment of these specialized wheels has fundamentally transformed our approach to monorail crane maintenance. The most immediate change is the extension of maintenance cycles from comprehensive inspections every 3 months to routine checks every 6 months, reducing annual maintenance time per crane by 120 hours.

More significantly, safety benefits have improved dramatically. Previously, transport interruptions due to wheel failures occurred 2-3 times monthly. Now, zero-failure operation has been maintained for 8 consecutive months. This not only ensures timely supply of production materials but also eliminates safety risks in underground operations that could arise from transport disruptions.

Industry Significance and Application Value

This case study demonstrates that under extreme underground coal mining conditions, deeply customized polyurethane wheel solutions can effectively address multiple challenges including heavy loads, corrosion, and safety. This not only enhances the operational reliability of monorail hoist systems but also lays a solid foundation for the intelligent upgrade of coal mine auxiliary transportation systems.

We remain committed to advancing the mining equipment sector, leveraging innovative material technologies to support safe production and efficient transportation in China’s mining industry.
