In the precision realm of industrial transmission, one component stands out as the flexible armor cladding steel skeletons—the polyurethane-coated wheel. As the pinnacle of polyurethane application technology, this product seamlessly integrates a metal core with high-performance polyurethane. With its unique performance advantages, it is quietly becoming a pivotal element in the modern industrial equipment upgrade.

I. Polyurethane-Coated Wheels: The Ultimate Expression of “Rigidity and Flexibility Combined”

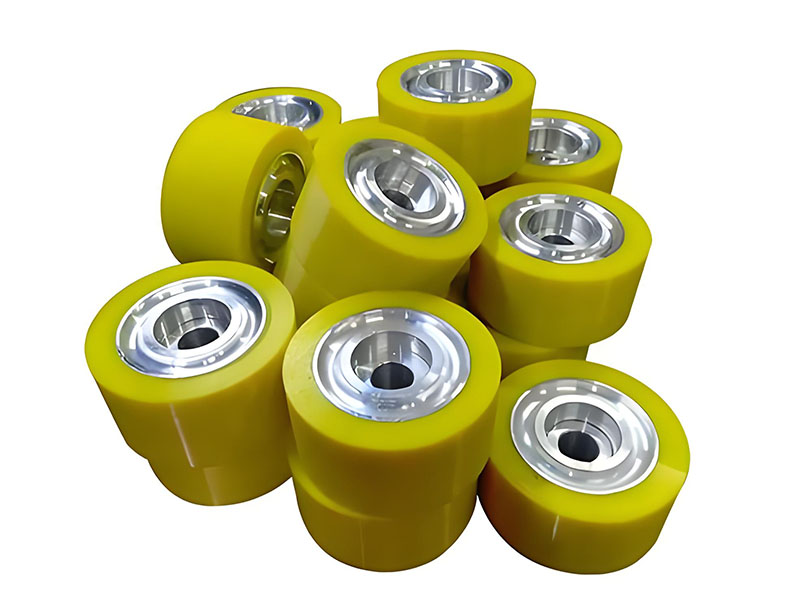

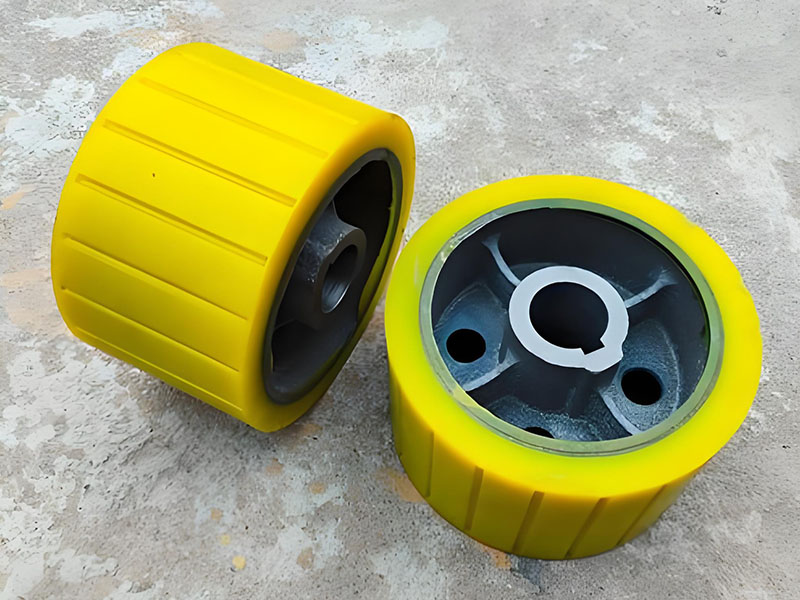

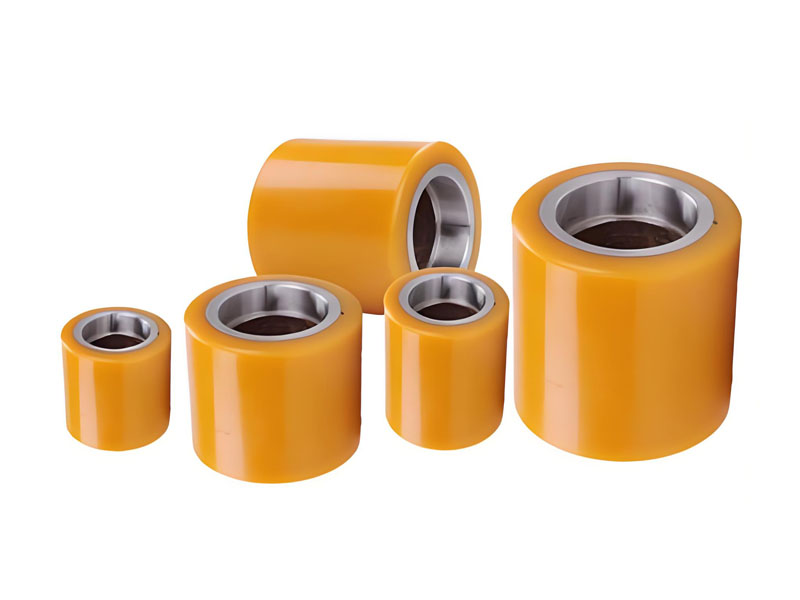

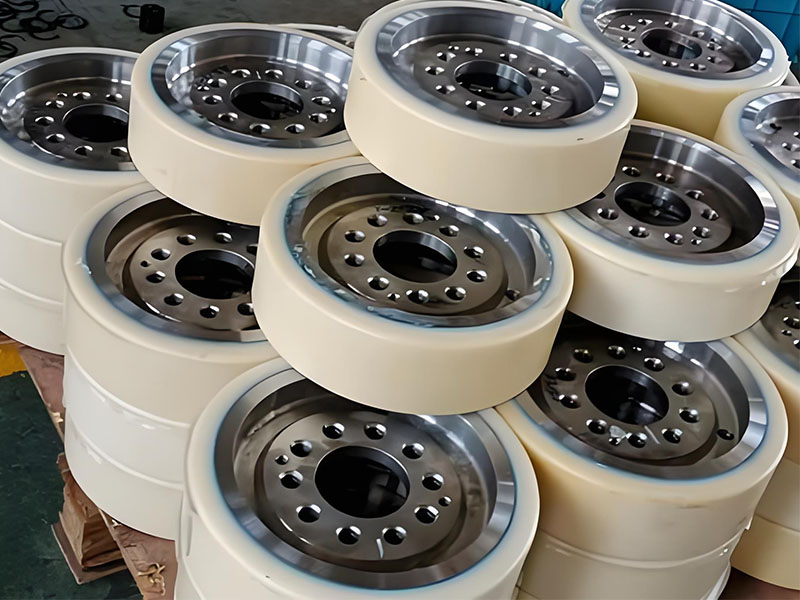

As the name suggests, polyurethane-coated wheels are composite products featuring a polyurethane elastomer layer bonded to the outer surface of a metal wheel core (typically steel, aluminum, or cast iron). This design transcends a simple “1+1” combination, fully leveraging the complementary strengths of both materials:

Metal Core: Provides structural strength, rigid support, and mounting interfaces
Polyurethane Overlay: Delivers friction, cushioning, wear resistance, and environmental adaptability

This composite structure achieves a performance balance unattainable by traditional single-material wheels, earning it the title of the “golden combination” in industrial transmission applications.

II. Four Core Advantages of Polyurethane Overmolded Wheels

1. Exceptional Traction and Transmission Performance
The polyurethane overlay allows precise adjustment of surface hardness (typically Shore A 80-95) and tread patterns (flat, V-shaped, serrated, etc.), delivering: 3-5 times higher friction coefficient than metal wheels in applications like conveyor belt drives and traction transmission. Precise speed synchronization prevents transmission errors caused by slippage. Smooth power transfer minimizes impact and vibration.

2. Unmatched Wear Resistance and Service Life
Yalide’s high-performance NDI polyurethane formulation enables coated wheels to excel under heavy-load, high-speed conditions: delivering 5-8 times greater wear resistance than standard rubber, over 30% higher tear strength, and stable physical properties even after prolonged use. Ideal for extreme abrasion environments like mining and ports.

3. Precise Cushioning and Noise Reduction
In precision manufacturing and quiet work environments, the polyurethane overlay plays an irreplaceable role: effectively absorbing impact and vibration during equipment operation, reducing transmission noise by 15-25 decibels, protecting transported precision components from damage, and enhancing overall equipment operational stability.

4. Exceptional Environmental Adaptability
By adjusting polyurethane formulations, coated wheels adapt to diverse special environments: oil resistance, chemical corrosion resistance, wide temperature range operation (-40°C to +120°C with specialized formulations), anti-static and conductive properties, and food-grade certified materials meeting cleanroom industry requirements.

III. Application Fields: Which Industries Benefit?

Smart Manufacturing & Automation: End-effector rollers for industrial robots, drive rollers for automated production lines, material transfer rollers for CNC equipment, positioning guide wheels for precision assembly lines.

Heavy-Duty Logistics & Specialized Transport: Rubber-coated travel wheels for port gantry cranes, heavy-duty drive drums for mining conveyor belts, drive wheel retrofits for specialized vehicles, guide wheels for heavy-lift equipment.

Food Packaging & Pharmaceutical Production: Cleanroom conveyor system rollers, filling line bottle/can transfer belt wheels, packaging machinery compression rollers, special applications compliant with FDA and USP Class VI certifications.

Printing & Textile Industries: Printing machinery tension control wheels, textile machinery fabric guide wheels, roll handling equipment contact wheels, precision coating equipment drive wheels.

IV. YALIDE Solutions: Technological Innovation Beyond Standards

As a national high-tech enterprise specializing in high-performance polyurethane material development, YALIDE delivers not just products but comprehensive solutions in polyurethane-coated wheels:

Material Innovation Advantages
Our proprietary NDI polyurethane system demonstrates unique value in coating applications: enhanced dynamic load capacity, superior compression set resistance, minimal dynamic heat generation, and exceptional hydrolysis and weather resistance.

Process Technology Breakthroughs
Bonding Technology: Utilizes patented surface treatment processes to ensure bond strength between polyurethane and metal cores exceeds the material’s inherent strength. Molding Process: Advanced casting technology guarantees bubble-free, uniform thickness, and consistent performance in overmolded layers. Precision Machining: CNC precision machining ensures dimensional accuracy and dynamic balance requirements.

Customization Capabilities
Offering an ultra-wide range from 50mm to 2000mm diameter, accommodating complex cross-sectional shapes for non-standard designs, and providing flexible support for rapid prototyping in small batches and stable supply in large volumes.

V. Industry Trends: The Intelligent Future of Polyurethane Overmolded Wheels

Although the initial procurement cost of polyurethane overmolded wheels may exceed that of standard steel or rubber wheels, their long-term value far surpasses the investment: service life extended by 3-5 times, significantly reduced replacement frequency, minimized equipment downtime, and enhanced production efficiency; lowered energy consumption (optimized friction coefficient), reduced damage to conveyed materials, and decreased maintenance and labor costs.

With the advancement of Industry 4.0, polyurethane-coated wheels are evolving toward intelligent capabilities:
Integrated Sensors: Real-time monitoring of wheel temperature, wear status, and load variations
Self-Healing Materials: Application of micro-damage auto-repair technology
Adaptive Design: Smart materials that automatically adjust surface properties based on operating conditions
Lightweight Structures: Combination of novel composite wheel cores with ultra-high-performance polyurethane

Conclusion: Infusing Resilient Intelligence into Industrial Transmission

Polyurethane-coated wheels, seemingly traditional industrial components, are gaining new vitality through high-performance materials and innovative processes. They transcend mere physical parts to become intelligent bridges connecting mechanical rigidity with operational flexibility.

At YALIDE, we believe every polyurethane-coated wheel carries an industrial responsibility—to deliver smoother transmission, more efficient operation, and extended equipment longevity. We invite you to explore the boundless potential of polyurethane coating technology with us, equipping your machinery with the most suitable “golden armor.”
