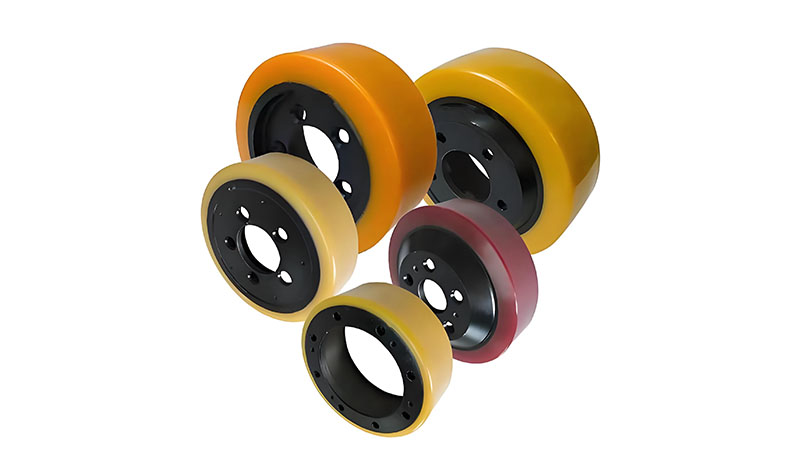

The polyurethane drive wheels designed specifically for precise transmission are the reliable core of your power system. We use high-performance polyurethane elastomer to wrap precision machined metal wheel cores, which combine excellent traction and wear resistance, ensuring effective resistance to deformation and slippage under high torque transmission.
Wheel hub material: steel/cast iron
Tire bead material: polyurethane
Hardness: 85A-97A
Load capacity: 0.5-2T
Applicable equipment: forklifts, automation equipment, logistics sorting lines, heavy-duty handling vehicles, etc
The polyurethane drive wheels designed specifically for precise transmission are the reliable core of your power system. We use high-performance polyurethane elastomer to wrap precision machined metal wheel cores, which combine excellent traction and wear resistance, ensuring effective resistance to deformation and slippage under high torque transmission.
Its optimized Shore hardness design can provide stable high friction under various working conditions, achieving smooth and efficient power transmission while effectively reducing operating noise. The high concentricity between the wheel body and the motor ensures precise and smooth transmission.
Whether it’s automation equipment, logistics sorting lines, or heavy-duty handling vehicles, our drive wheels can provide strong and long-lasting power, significantly improving transmission efficiency and system reliability, making them the ideal choice to ensure the continuous and efficient operation of your equipment.
 Model number |
 Diameter (mm) |
 Width (mm) |
 Bearing capacity (NDIthane) |
 Carrying capacity (MDIthane) |
| YLD-200×85 | 200 | 85 | 1400 | 1360 |
| YLD-215×82 | 215 | 82 | 1450 | 1400 |
| YLD-230×70 | 230 | 70 | 1350 | 1250 |
| YLD-230×75 | 230 | 75 | 1450 | 1350 |
| YLD-230×85 | 230 | 85 | 1650 | 1550 |
| YLD-230×90 | 230 | 90 | 1750 | 1650 |
| YLD-250×75 | 250 | 75 | 1600 | 1500 |
| YLD-250×80 | 250 | 80 | 1700 | 1600 |
| YLD-250×100 | 250 | 100 | 2100 | 2000 |
| YLD-254×102 | 254 | 102 | 2000 | 1900 |
| YLD-255×75 | 255 | 75 | 1450 | 1350 |
| YLD-300×100 | 300 | 100 | 2500 | 2400 |
| YLD-343×110 | 343 | 110 | 2950 | 2800 |
| YLD-343×135 | 343 | 135 | 3600 | 3450 |
| YLD-343×140 | 343 | 140 | 3750 | 3600 |
Model number |
Diameter (mm) |
Width (mm) |
Bearing capacity (NDIthane) |
Carrying capacity (MDIthane) |
| YLD-100×50 | 100 | 50 | 450 | 430 |
| YLD-125×50 | 125 | 50 | 540 | 510 |
| YLD-150×50 | 150 | 50 | 670 | 660 |
| YLD-160×50 | 160 | 50 | 700 | 660 |
| YLD-180×55 | 180 | 55 | 870 | 820 |
| YLD-200×80 | 200 | 80 | 1400 | 1300 |
| YLD-230×80 | 230 | 80 | 1500 | 1450 |
| YLD-250×80 | 250 | 80 | 1700 | 1600 |
| YLD-300×100 | 300 | 100 | 2550 | 2400 |
| YLD-350×100 | 350 | 100 | 2850 | 2700 |
| YLD-400×125 | 400 | 125 | 4000 | 3500 |
| YLD-500×150 | 500 | 150 | 5200 | 5100 |
| YLD-600×200 | 600 | 200 | 8800 | 8400 |
| YLD-750×200 | 750 | 200 | 9500 | 9200 |
| YLD-1000×300 | 1000 | 300 | 16000 | 14000 |
