BT Forklift Wheels

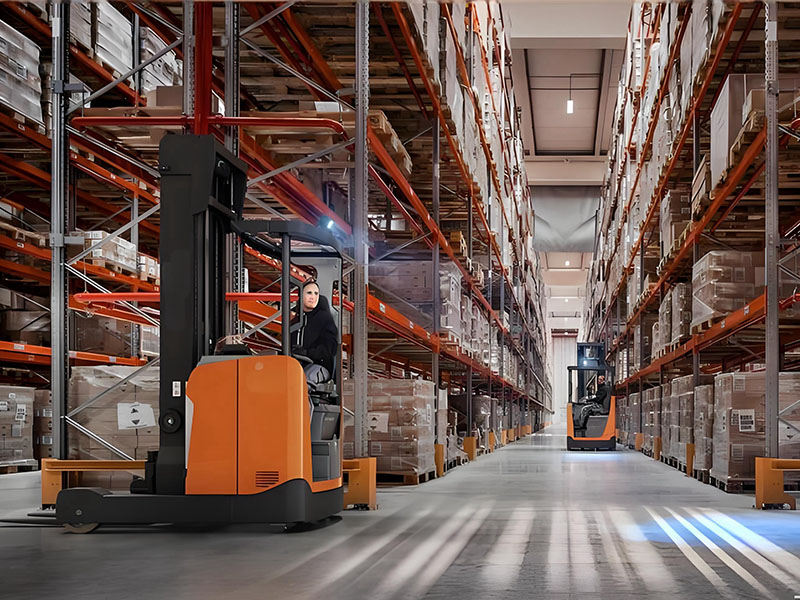

There are many types of BT forklifts, including electric forklifts, hydraulic forklifts, electric pallets, electric handling vehicles, electric stacker trucks, and so on. We can provide a full range of polyurethane drive wheels, polyurethane load-bearing wheels, polyurethane auxiliary wheels, and pallet truck rollers to match BT forklifts.

The company has independently designed and adopted a special production process for NDI polyurethane formula, including vulcanization, to prevent common delamination of NDI polyurethane coated wheels. At the same time, it has the characteristic of low internal heat generation, and under high-speed and high load conditions, it does not melt or lose powder due to high tread temperature.

Driving Wheels

Number	Outer diameter (mm)	Width (mm)	Inner diameter (mm)	Single wheel load (kg)	Corresponding code	Image
YLD-215×89/79/170-60-BT	215	89/79/170	60	1500		View
YLD-215×70-45-BT	215	70	45	1500	129920	View
YLD-215×70-45-BT	215	70	45	1500	163950	View
YLD-215×70-45-BT	215	70	45	1500	239951	View
YLD-230×070/185-45-BT	230	070/185	45	1500		View
YLD-230×70-45-BT	230	70	45	1500	249945	View
YLD-230×70-45-BT	230	70	45	1500	7535733	View
YLD-230×70-45-BT	230	70	45	1500	7535735	View
YLD-230×90-60-BT	230	90	60	1500	108095	View
YLD-230×70-45-BT	230	70	45	1500	256764	View
YLD-230×70-45-BT	230	70	45	1500	209003	View
YLD-250×75/200-80-BT	250	75/200	80	1800		View
YLD-250×92/200-80-BT	250	92/200	80	1800		View
YLD-250×105-80-BT	250	105	80	1500	135161	View
YLD-250×75-80-BT	250	75	80	1800	138457	View
YLD-250×75-80-BT	250	75	80	1800	7528910	View
YLD-250×75-80-BT	250	75	80	1800	19677841	View
YLD-300×106-45-BT	300	106	45	1500	7518697	View
YLD-308×120-80-BT	308	120	80	1500	241752	View
YLD-310×250/120-80-BT	310	250/120	80	1600		View
YLD-310×245/120-80-BT	310	245/120	80	1600		View
YLD-330×140/278-80-BT	330	140/278	80	2000		View
YLD-330×140/278-90-BT	330	140/278	90	2000		View
YLD-350×140-80-BT	350	140	80	2000		View
YLD-350×140/290-90-BT	350	140/290	90	2000		View
YLD-350×127/290-80-BT	350	127/290	80	2000		View
YLD-350×106/300-40/30-BT	350	106/300	40/30	2000		View
YLD-350×127.5-80-BT	350	127.5	80	2000	220403	View
YLD-350×140-90-BT	350	140	90	2000	201332	View
YLD-350×140-90-BT	350	140	90	2000	7594123	View
YLD-360×160-90-BT	360	160	90	2000		View
YLD-400×160/340/112-80-BT	400	160/340/112	80	2000		View
YLD-400×160-80-BT	400	160	80	2000	238970	View

Load-Bearing wheels

Number	Outer diameter (mm)	Width (mm)	Inner diameter (mm)	Single wheel load (kg)	Corresponding code	Image
YLD-230×110/116-30-BT	230	110/116	30	1600		View
YLD-230×65/70/190-35-BT	230	65/70/190	35	1500		View
YLD-230×110/190-30-BT	230	110/190	30	1500		View
YLD-230×110-30-BT	230	110	30	1500	176727	View
YLD-230×110/115-30-BT	230	110/115	30	1500	137584	View
YLD-280×106-40-BT	280	106	40	1600		View
YLD-285×75/240/62-40-BT	285	75/240/62	40	1600		View
YLD-285×85/240-40-BT	285	85/240	40	1600		View
YLD-285×80-62-BT	285	80	62	1200	215806	View
YLD-300×250/106-30-BT	300	250/106	30	1600		View
YLD-300×100/244-40-BT	300	100/244	40	1600		View
YLD-300×100/250-40-BT	300	100/250	40	1600		View
YLD-300×106/250-40-BT	300	106/250	40	1600		View
YLD-350×106/300-30/40-BT	350	106/300	30/40	1600		View
YLD-350×55/310-40-BT	350	55/310	40	1600		View
YLD-350×108/300-40-BT	350	108/300	40	1600		View
YLD-350×106-40-BT	350	106	40	1500	217634	View
YLD-350×106-30-BT	350	106	30	1500	241860	View
YLD-350×106-40-BT	350	106	40	1600	7585838	View
YLD-350×106-30-BT	350	106	30	1200	7610264	View

Training Wheels

Number	Outer diameter (mm)	Width (mm)	Inner diameter (mm)	Single wheel load (kg)	Corresponding code	Image
YLD-100×45/78-30-BT	100	45/78	30	600		View
YLD-100×40-30-BT	100	40	30	600		View
YLD-125×40/50/105-20-BT	125	40/50/105	20	600		View
YLD-125×50/95-20-BT	125	50/95	20	600		View
YLD-125×50-20-BT	125	50	20	600		View
YLD-125×50/60-20-BT	125	50/60	20	600	7611201	View
YLD-125×50-20-BT	125	50	20	600	171999	View
YLD-125×50/100-20-BT	125	50/100	20	600	7563324	View
YLD-125×54-20-BT	125	54	20	600	813130	View
YLD-125×50/105-20-BT	125	50/105	20	600	156259	View
YLD-140×60/115-15-BT	140	60/115	15	600		View
YLD-140×40/50/120-20-BT	140	40/50/120	20	800		View
YLD-140×70/73/115-20-BT	140	70/73/115	20	800		View
YLD-150×40/125-13-BT	150	40/125	13	600		View
YLD-150×35/39-25-BT	150	35/39	25	800		View
YLD-150×78/85.5/130-24.2-BT	150	78/85.5/130	24.2	800		View
YLD-150×78-25-BT	150	78	25	600	7542701	View
YLD-160×45/130-30-BT	160	45/130	30	800		View

Rollers

Number	Outer diameter (mm)	Width (mm)	Inner diameter (mm)	Single wheel load (kg)	Corresponding code	Image
YLD-80×74/76-13-BT	80	74/76	13	600		View
YLD-80×70-12-BT	80	70	12	600	215183	View
YLD-82×70/57-20-BT	82	70/57	20	600		View
YLD-85×74/76-13-BT	85	74/76	13	600		View
YLD-85×100/102-17-BT	85	100/102	17	600		View
YLD-85×85/97-20-BT	85	85/97	20	600		View
YLD-85×95-20-BT	85	95	20	600	253072	View
YLD-85×100-20-BT	85	100	20	600	10100	View
YLD-85×100-20-BT	85	100	20	600	215176	View
YLD-85×100-20-BT	85	100	20	600	223385	View
YLD-85×74-13-BT	85	74	13	600	220212	View

Attention: The above parameters are for reference only, and the actual model specifications and parameters shall prevail!
