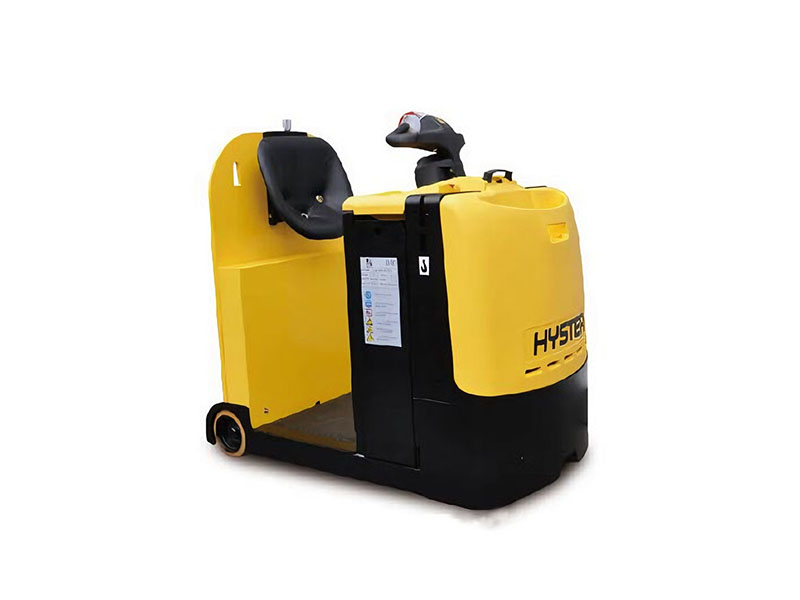

HYSTER Forklift Wheels

The Hyster special wheels we produce use a specially designed high load polyurethane formula and reinforced wheel core, which has extremely high impact resistance and wear resistance. The product can not only easily withstand frequent heavy load operations, but its wear resistance life is several times that of ordinary rubber wheels, and it can effectively resist the erosion of ground debris and oil stains. At the same time, the optimized tread design ensures stability and traction under heavy loads, effectively protecting equipment and the ground, and improving operational efficiency and safety in harsh environments such as ports, steel, and large warehouses.

We ensure that every product is accurately matched with the original specifications and rigorous working conditions of Hyster forklifts, ensuring seamless installation and long-lasting reliable operation. Choosing our polyurethane wheels injects a stronger and more durable walking system into your powerful Hyster forklift, helping you move steadily in the most challenging working conditions and achieve your mission.

Driving Wheels

Number	Outer diameter (mm)	Width (mm)	Inner diameter (mm)	Single wheel load (kg)	Image
YLD-305×140-203/63	305	140	203/63	2000	View
YLD-250×80-65	250	80	65	1500	View
YLD-343×140-80	343	140	80	2000	View
YLD-343×140-65	343	140	65	1500	View
YLD-250×75-45	250	75	45	1000	View
YLD-230×75-30	230	75	30	1000	View
YLD-254×90-40	254	90	40	1200	View
YLD-330×145-90	330	145	90	2000	View
YLD-330×145-180	330	145	180	2000	View
YLD-230×75-40	230	75	40	1000	View
YLD-230×75-30	230	75	30	1000	View
YLD-285×140-68	285	140	68	2000	View
YLD-285×100-40	285	100	40	1600	View
YLD-285×100-80	285	100	80	1500	View

Load-Bearing wheels

Number	Outer diameter (mm)	Width (mm)	Inner diameter (mm)	Single wheel load (kg)	Image
YLD-127×73-62	127	73	62	1600	View
YLD-127×98-62/17.5	127	98	62/17.5	800	View
YLD-160×98-80/20	160	98	80/20	800	View

Training Wheels

Number	Outer diameter (mm)	Width (mm)	Inner diameter (mm)	Single wheel load (kg)	Image
YLD-125×50-52/25	125	50	52/25	1000	View
YLD-178×76-30	178	76	30	1000	View
YLD-100×40-15	100	40	15	800	View
YLD-100×40-30	100	40	30	1000	View

Rollers

Number	Outer diameter (mm)	Width (mm)	Inner diameter (mm)	Single wheel load (kg)	Image
YLD-85×90/95-12	85	90/95	12	500	View
YLD-85×65-17	85	65	17	600	View
YLD-85×110-12	85	110	12	500	View
YLD-85×85-12	85	85	12	500	View
YLD-85×90-20	85	90	20	800	View
YLD-85×110-55/20.5	85	110	55/20.5	800	View

Attention: The above parameters are for reference only, and the actual model specifications and parameters shall prevail!
