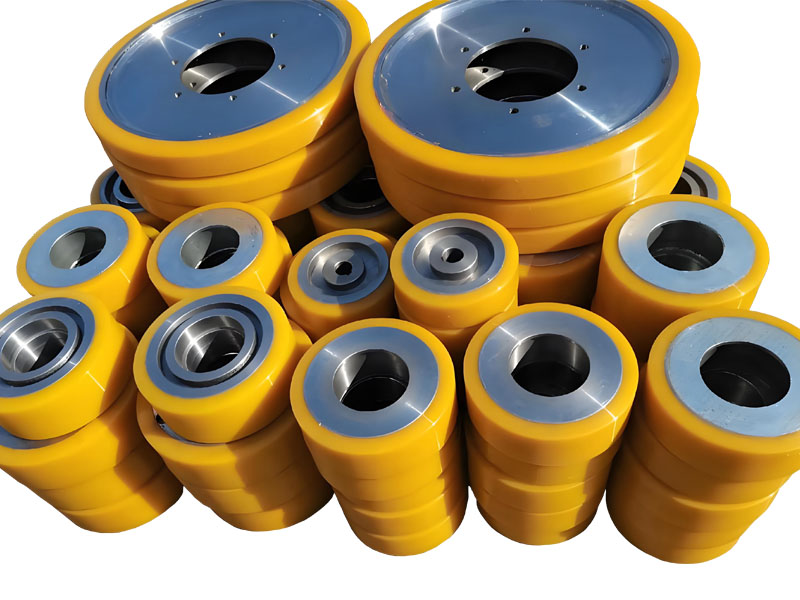

The guide wheel surface is made of high-performance polyurethane elastomer precision casting, which combines excellent wear resistance and high elasticity, effectively absorbs impact and vibration during operation, and significantly reduces noise.
Wheel hub material: steel/cast iron
Tire bead material: polyurethane
Hardness: 85A-97A
Load capacity: 0.5-2T
Applicable equipment: automation production lines, precision conveying systems, heavy-duty AGV equipment, automatic shuttle vehicles and other automation fields
Product description: In the field of precision transmission and automation, precise guidance is the core to ensure smooth and efficient operation of equipment. Our polyurethane guide wheels designed specifically for harsh working conditions are a reliable solution for this purpose.
The guide wheel surface is made of high-performance polyurethane elastomer precision casting, which combines excellent wear resistance and high elasticity, effectively absorbs impact and vibration during operation, and significantly reduces noise. Its unique material properties provide moderate friction, ensuring precise tracking guidance without excessive wear or damage to the contact surface when in contact with the track or guide rail.
Whether it is an automated production line, precision conveyor system, or heavy-duty AGV equipment, our guide wheels can provide stable and reliable guidance support for your equipment with their excellent dimensional stability, tear resistance, and long service life. They effectively prevent deviation and wear, and are key components for improving the overall operational accuracy and durability of the system.
 Number |
 Outer diameter (mm) |
 Wheel width (mm) |
 Inner diameter (mm) |
 Load-bearing(kg) |
| YLD-40×15-17 | 40 | 15 | 17 | 50 |
| YLD-50×15-10 | 50 | 15 | 10 | 65 |
| YLD-50×15-12 | 50 | 15 | 12 | 80 |
| YLD-50×18-15 | 50 | 18 | 15 | 80 |
| YLD-50×18-17 | 50 | 18 | 17 | 100 |
| YLD-60×20-17 | 60 | 20 | 17 | 110 |
| YLD-60×20-20 | 60 | 20 | 20 | 135 |
| YLD-70×20-20 | 70 | 20 | 20 | 160 |
| YLD-70×20-25 | 70 | 20 | 25 | 130 |
| YLD-70×25-20 | 70 | 25 | 20 | 200 |
| YLD-70×25-25 | 70 | 25 | 25 | 200 |
| YLD-75×25-20 | 75 | 25 | 20 | 215 |
| YLD-75×25-25 | 75 | 25 | 25 | 215 |
| YLD-80×20-15 | 80 | 20 | 15 | 150 |
| YLD-80×20-17 | 80 | 20 | 17 | 150 |
| YLD-80×20-20 | 80 | 20 | 20 | 160 |
| YLD-80×25-20 | 80 | 25 | 20 | 230 |
| YLD-80×25-25 | 80 | 25 | 25 | 230 |
| YLD-90×25-20 | 90 | 25 | 20 | 260 |
| YLD-90×25-25 | 90 | 25 | 25 | 260 |
| YLD-100×25-20 | 100 | 25 | 20 | 250 |
| YLD-100×25-25 | 100 | 25 | 25 | 250 |
| YLD-110×25-25 | 110 | 25 | 25 | 275 |
| YLD-120×25-25 | 120 | 25 | 25 | 300 |
| YLD-125×25-25 | 125 | 25 | 25 | 290 |
| YLD-125×30-20 | 125 | 30 | 20 | 375 |
| YLD-125×30-25 | 125 | 30 | 25 | 375 |
Model number |
Diameter (mm) |
Width (mm) |
 Bearing capacity (NDIthane) |
 Carrying capacity (MDIthane) |
| YLD-40×15 | 40 | 15 | 48 | 40 |
| YLD-50×20 | 50 | 20 | 78 | 68 |
| YLD-55×20 | 55 | 20 | 80 | 70 |
| YLD-60×20 | 60 | 20 | 90 | 80 |
| YLD-70×20 | 70 | 20 | 105 | 90 |
| YLD-80×25 | 80 | 25 | 150 | 125 |
| YLD-90×25 | 90 | 25 | 170 | 150 |
| YLD-100×25 | 100 | 25 | 190 | 170 |
| YLD-120×30 | 120 | 30 | 270 | 240 |
| YLD-125×30 | 125 | 30 | 280 | 240 |
| YLD-150×50 | 150 | 50 | 560 | 280 |
| YLD-150×80 | 150 | 80 | 900 | 800 |
Yalide Technology focuses on providing customers with one-stop system solutions for roller/shaft/wheel products.
