Load Bearing Wheels

We carefully select high-performance polyurethane elastomer formulas and use scientific molecular structure design to endow the wheels with extremely high mechanical and tear strength, enabling them to withstand continuous impact and heavy pressure with ease, effectively avoiding crushing deformation and significantly extending their service life. Its unique elastic properties not only provide better cushioning and shock absorption performance than hard materials such as nylon, protecting the ground and equipment structure, but also bring a quiet and smooth operating experience.

For different application scenarios, we offer customized choices of hardness and specifications ranging from Shore A75 to A98, ensuring excellent performance under both dynamic rolling loads and static bearing pressures. Whether it’s heavy-duty trucks, large production lines, or warehousing logistics systems, our load-bearing wheels can become an indestructible mobile fulcrum under your equipment with their excellent load capacity, wear resistance, and reliability, effectively reducing maintenance frequency and overall operating costs.

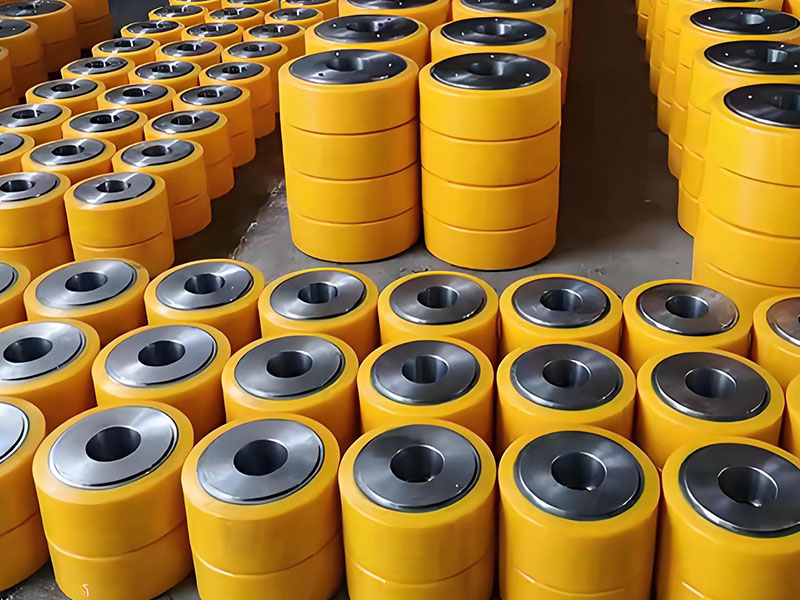

Polyurethane Load-bearing Wheels

Number	Outer diameter (mm)	Wheel width (mm)	Inner diameter (mm)	Load-bearing(kg)
YLD-100×50-20	100	50	20	600
YLD-110×50-20	110	50	20	650
YLD-125×40-20	125	40	20	550
YLD-125×50-20	125	50	20	700
YLD-125×60-20	125	60	20	850
YLD-140×59-20	140	59	20	800
YLD-140×59-25	140	59	25	800
YLD-150×54-20	150	54	20	950
YLD-150×80-25	150	80	25	1200
YLD-150×55-25	150	55	25	850
YLD-150×50-20	150	50	20	800
YLD-180×50-20	180	50	20	700
YLD-180×50-25	180	50	25	700
YLD-180×65-25	180	65	25	1100
YLD-200×50-20	200	50	20	700
YLD-200×50-25	200	50	25	700

Model number	Diameter (mm)	Width (mm)	Bearing capacity (NDIthane)	Carrying capacity (MDIthane)
YLD-100×50	100	50	520	500
YLD-125×75	125	75	910	860
YLD-150×80	150	80	1150	1050
YLD-160×80	160	80	1300	1220
YLD-180×80	180	80	1450	1380
YLD-200×80	200	80	1550	1480
YLD-230×80	230	80	1750	1650
YLD-250×100	250	100	2430	2300
YLD-300×100	300	100	2900	2750
YLD-350×120	350	120	3950	3750
YLD-400×125	400	125	3850	4100
YLD-500×150	500	150	6100	5800
YLD-600×200	600	200	9800	9300
YLD-750×200	750	200	10500	10000
YLD-1000×300	1000	300	23600	22400
