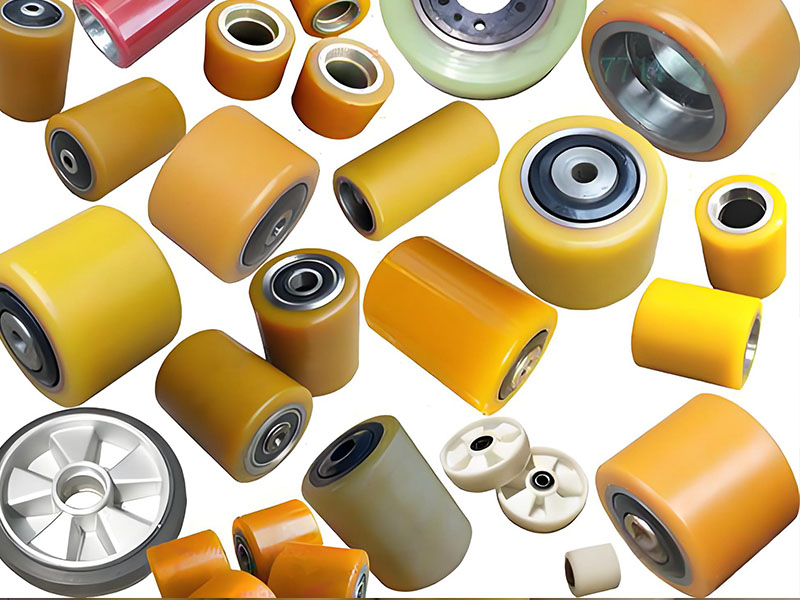

Tray Rollers

We offer various specifications from lightweight to heavy-duty, and can customize different hardness, color, and installation structure according to specific application needs. Whether it’s automated production lines, logistics sorting systems, or heavy-duty handling equipment, our polyurethane rollers can provide stable and reliable support and transmission, making them ideal components for improving system performance and durability.

The roller is made of high-quality polyurethane material with precision manufacturing, and its core advantage lies in its high load-bearing capacity and excellent cushioning elasticity. Polyurethane material endows the roller with wear resistance and tear resistance far beyond ordinary rubber, effectively resisting impact, wear, and erosion from various industrial media, greatly extending its service life.

Rollers

Number	Outer diameter (mm)	Wheel width (mm)	Inner diameter (mm)	Load-bearing(kg)
YLD-80×70-20	80	70	20	630
YLD-82×100-20	82	100	20	920
YLD-82×60-20	82	60	20	550
YLD-82×60-25	82	60	25	550
YLD-82×65-20	82	65	20	590
YLD-82×70-20	82	70	20	640
YLD-85×100-17	85	100	17	960
YLD-85×100-20	85	100	20	960
YLD-85×100-25	85	100	25	960
YLD-85×60-17	85	60	17	560
YLD-85×60-20	85	60	20	560
YLD-85×70-17	85	70	17	660
YLD-85×70-20	85	70	20	660
YLD-85×75-17	85	75	17	720
YLD-85×75-20	85	75	20	720
YLD-85×75-25	85	75	25	720
YLD-85×90-17	85	90	17	850
YLD-85×90-20	85	90	20	850
YLD-60×35-15	60	35	15	220
YLD-60×60-10	60	60	10	400
YLD-75×40-20	75	40	20	340
YLD-75×62-20	75	62	20	510
YLD-75×75-20	75	75	20	630
YLD-75×95-20	75	95	20	800
YLD-80×30-12	80	30	12	260
YLD-80×40-20	80	40	20	350
YLD-80×54-20	80	54	20	480
YLD-80×56-20	80	56	20	500
YLD-80×60-20	80	60	20	530
YLD-80×62-20	80	62	20	550
YLD-80×74-20	80	74	20	660
YLD-80×80-20	80	80	20	720
YLD-80×95-20	80	95	20	850
YLD-82×28-12	82	28	12	250
YLD-82×34-12	82	34	12	310
YLD-82×50-20	82	50	20	450
YLD-82×62-20	82	62	20	560
YLD-82×72-20	82	72	20	660
YLD-82×80-20	82	80	20	730
YLD-82×82-20	82	82	20	750
YLD-82×89-20	82	89	20	820
YLD-82×90-20	82	90	20	830
YLD-82×98-20	82	98	20	910
YLD-83×115-30	83	115	30	1070
YLD-83×83-25	83	83	25	780
YLD-84×74-17	84	74	17	690
YLD-85×105-25	85	105	25	1010
YLD-85×110-25	85	110	25	1060
YLD-85×120-25	85	120	25	1130
YLD-85×50-20	85	50	20	460
YLD-85×50-25	85	50	25	460
YLD-85×65-20	85	65	20	610
YLD-85×78-20	85	78	20	740
YLD-85×80-17	85	80	17	770
YLD-85×80-20	85	80	20	770
YLD-85×80-25	85	80	25	770
YLD-85×85-20	85	85	20	820
YLD-85×85-25	85	85	25	820
YLD-85×87-17	85	87	17	830
YLD-90×42-20	90	42	20	420
YLD-90×50-20	90	50	20	500
YLD-82×110-25	82	110	25	1010
YLD-82×60-12	82	60	12	550
YLD-85×105-12	85	105	12	1010
YLD-85×105-17	85	105	17	1010
YLD-85×105-20	85	105	20	1010
YLD-85×110-12	85	110	12	1060
YLD-85×110-17	85	110	17	1060
YLD-85×110-20	85	110	20	1060
YLD-85×60-25	85	60	25	560
YLD-85×65-12	85	65	12	610
YLD-85×65-17	85	65	17	610
YLD-85×65-25	85	65	25	610
YLD-85×70-12	85	70	12	660
YLD-85×70-25	85	70	25	660
YLD-85×95-12	85	95	12	910
YLD-85×95-17	85	95	17	910
YLD-85×95-20	85	95	20	910
YLD-85×95-25	85	95	25	910

Model number	Diameter (mm)	Width (mm)	Bearing capacity (NDIthane)	Carrying capacity (MDIthane)
YLD-85×60	85	60	570	570
YLD-85×70	85	70	620	620
YLD-85×75	85	75	660	660
YLD-85×80	85	80	710	710
YLD-85×85	85	85	750	750
YLD-85×90	85	90	800	800
YLD-85×95	85	95	840	840
YLD-85×100	85	100	880	880
YLD-85×105	85	105	930	930
YLD-85×120	85	120	1050	1050
